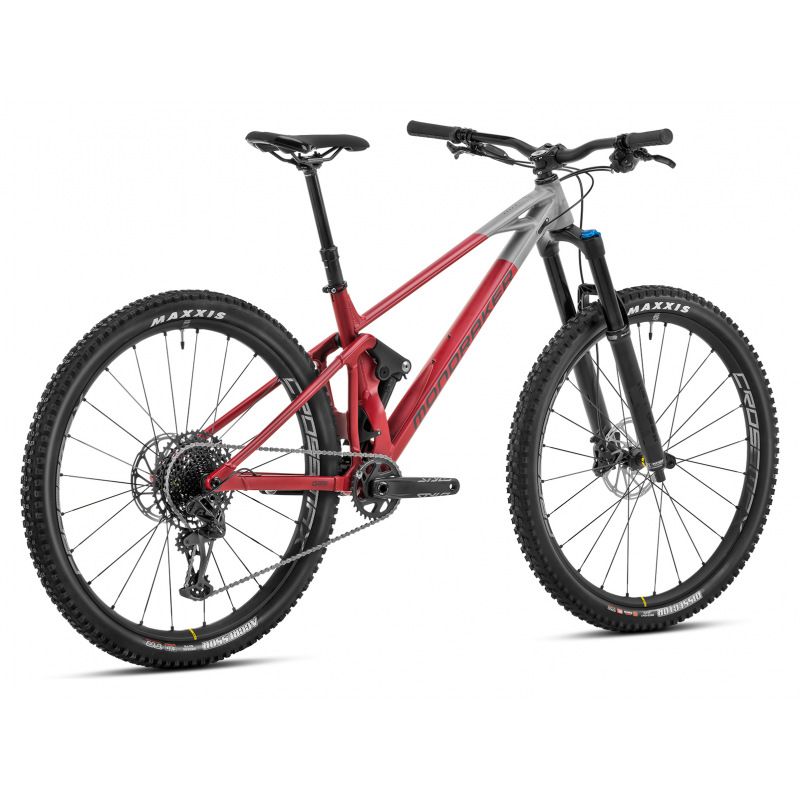

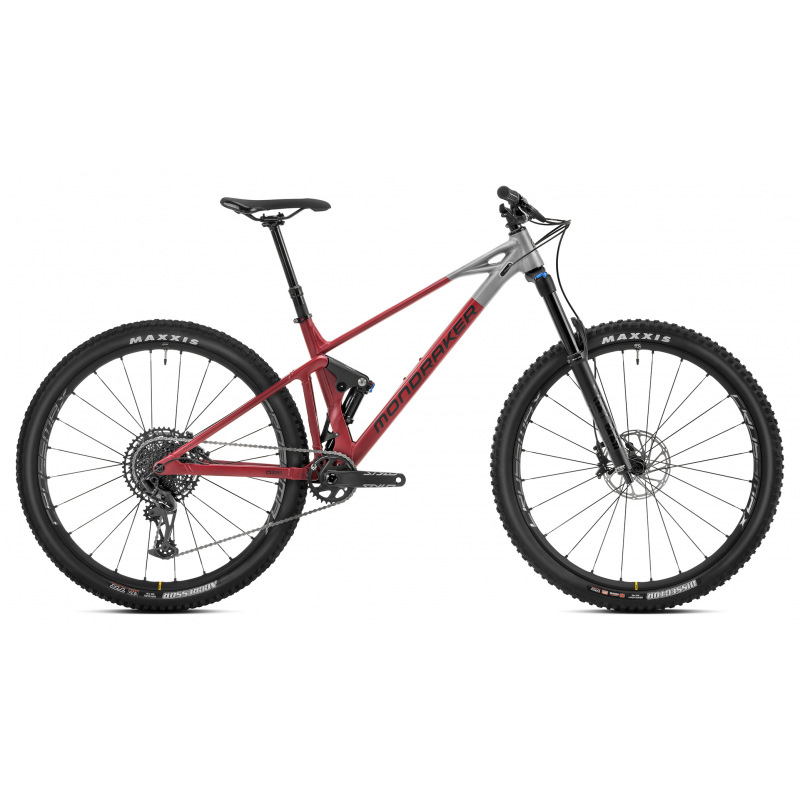

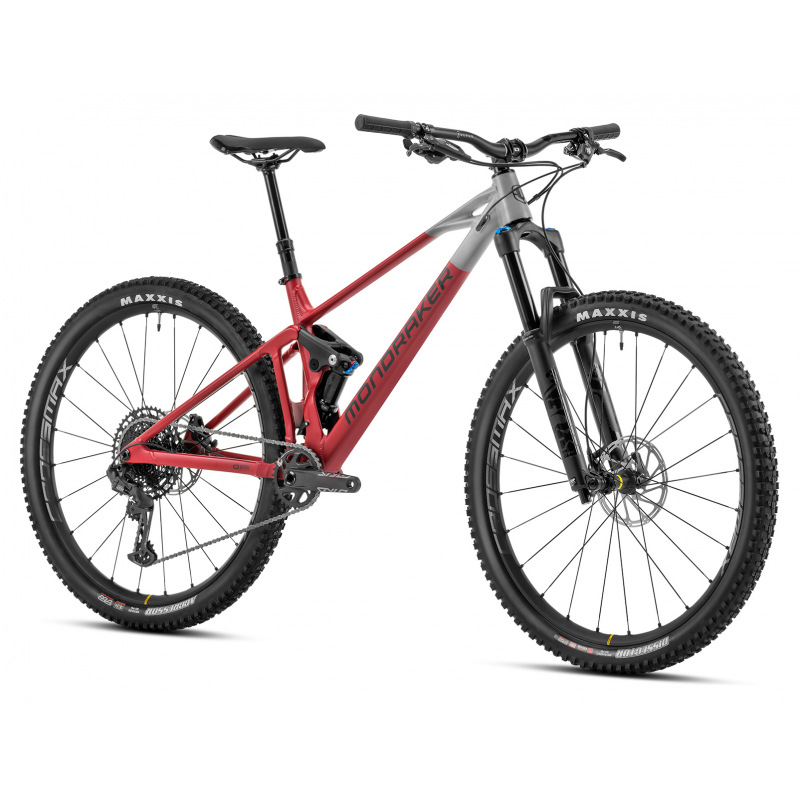

MONDRAKER RAZE R CHERRY RED/NIMBUS GREY 2025
010.23077
Nový produkt
Ku každému biku od nás získaš ako bonus servis na 2 roky grátis - viac info TU
Novinka tohtoročnej sezóny, RAZE R má rovnaké vlastnosti ako verzia CARBON, ale s rámom z hliníkovej zliatiny. Je taký zdatný vo výšlapoch, že keď príde čas ísť dole kopcom, budete ohromení úrovňou tlmenia nárazov a ovládateľnosti.
Zábava je jednoducho jednou z najväčších predností RAZE R. So zdvihom 150 mm vpredu a 130 mm vzadu je RAZE R vybavený vidlicou Fox 36 Float spojenou s tlmičom Fox Float; 12-rýchlostný pohon SRAM GX/SRAM NX Eagle; kolesá Mavic Crossmax XL; brzdy SRAM G2; a ONOFF komponenty.
- Poslať známemu
- Vytlačiť
Cena naposledy
Detaily
vyrábané veľkosti
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
rám
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
vidlica
Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
hlavové zloženie
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
prehadzovačka
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
radenie
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
brzdové páčky
Sram G2 R, tool-free reach adjust
Sram G2 R, tool-free reach adjust
kľuky
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
stredové zloženie
Sram DUB BSA, sealed bearings, 73mm
Sram DUB BSA, sealed bearings, 73mm
riadidlá
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
predstavec
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
sedlo
MDK series PU 2023
MDK series PU 2023
náboj predný
Infinity hub, Boost 15x110mm, IS 6 bolts
Infinity hub, Boost 15x110mm, IS 6 bolts
náboj zadný
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
reťaz
Sram NX Eagle, 12s, Powerlock
Sram NX Eagle, 12s, Powerlock
kazeta
Sram XG-1230, 11-50T, 12s
Sram XG-1230, 11-50T, 12s
drôty
24 straight-pull double butted spokes
24 straight-pull double butted spokes
ráfiky
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
plášte
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead / Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead / Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
obj.c.
010.23081
010.23081
gripy
Onoff Twin, 1lock-on, 135mm
Onoff Twin, 1lock-on, 135mm
tlmič
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
predná brzda
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
zadná brzda
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
nastavenia tlmiče
Light compression, light rebound, air volume spacer 0.6
Light compression, light rebound, air volume spacer 0.6
prevodník
32T, CNC-machined alloy, X-SYNC 2
32T, CNC-machined alloy, X-SYNC 2
pätka k přehazovačce
Sram UDH
Sram UDH
